281810-1

Name: TE Connectivity 281810-1
Brand: TE Connectivity / AMP
SKU: 571-281810-1
Price: 8 EUR
Availability: InStock

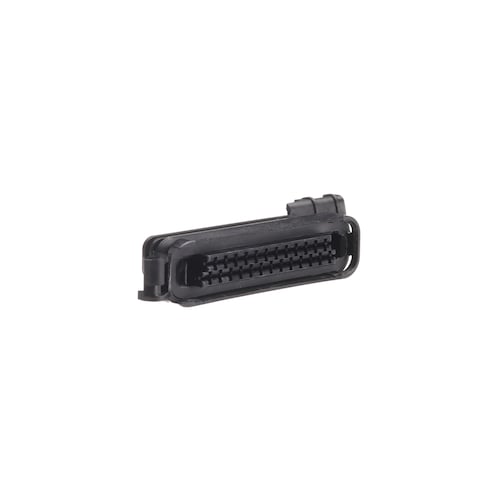

Images are for reference only
See Product Specifications

Mouser No:

571-281810-1

Mfr. No:

281810-1

Mfr.:

TE Connectivity / AMP

Description:

Automotive Connectors JR TMR WIRE SEAL CO

Datasheet:

281810-1 Datasheet

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about TE Connectivity / AMP 281810-1

In Stock: 362

Stock:: 362 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 22 Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	8,00 €	8,00 €
	6,79 €	67,90 €
	6,24 €	156,00 €
	5,99 €	599,00 €
	5,22 €	5.481,00 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	TE Connectivity
Product Category:	Automotive Connectors
RoHS:
Product:	Housings
Number of Positions:	25 Position
Pitch:	5 mm (0.197 in)
Gender:	Pin (Male)
Color:	Black
Series:	Junior Timer
Application:	Wire to Board/Device
Brand:	TE Connectivity / AMP
Contact Gender:	Pin (Male)
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	IT
Height:	39.6 mm
Housing Material:	Polyamide (PA)
Ingress Protection:	IP54K
Length:	3.949 in
Locking Mechanism:	On the terminal
Maximum Operating Temperature:	+ 105 C
Minimum Operating Temperature:	- 30 C
Mounting Angle:	Right Angle
Number of Rows:	2 Row
Product Type:	Automotive Connectors
Row Spacing:	5.7 mm
Factory Pack Quantity:	150
Subcategory:	Automotive Connectors
Tradename:	Timer
Voltage Rating:	24 VDC
Width:	25 mm
Unit Weight:	33,740 g

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

281810-1 Datasheet

Images

PCN

RoHS Certificate (PDF)

TARIC:: 8547200090
CNHTS:: 8538900000
USHTS:: 8538908180
JPHTS:: 853890000
ECCN:: EAR99

Timer Interconnection System

TE Connectivity's (TE) Timer Interconnect System features contacts used extensively in the automotive industry. Each contact of this TE series consists of a flat receptacle, which mates with a flat tab. The receptacle has two respective four contact springs, which are independent of each other. Two-piece contacts with a steel top spring are predominantly. This two-piece contact design means that the electrical and mechanical properties are separated. One end of the contact body is either crimped to wire or soldered to a printed circuit board. The other end of the contact body mates with the matching tab.
