DT04-3P-CL06

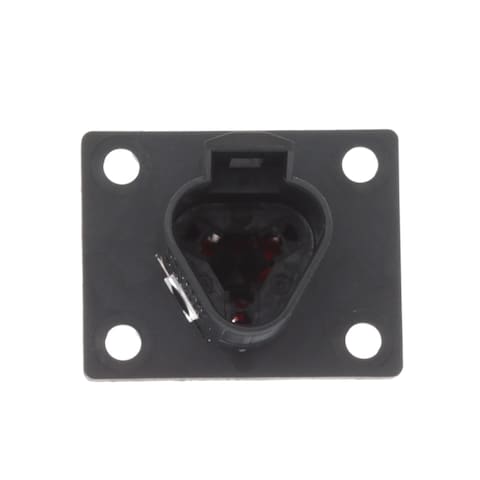

Name: TE Connectivity DT04-3P-CL06
Brand: TE Connectivity / DEUTSCH
SKU: 571-DT04-3P-CL06
Price: 7.36 EUR
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

571-DT04-3P-CL06

Mfr. No:

DT04-3P-CL06

Mfr.:

TE Connectivity / DEUTSCH

Description:

Automotive Connectors REC, 3P, BLK, E, FLANGE

Datasheet:

DT04-3P-CL06 Datasheet

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

In Stock: 359

Stock:: 359 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 13 Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	7,36 €	7,36 €
	6,34 €	63,40 €
	5,94 €	148,50 €
	5,67 €	283,50 €
	5,39 €	539,00 €
	5,06 €	1.265,00 €
	4,81 €	1.924,00 €
	4,58 €	5.496,00 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	TE Connectivity
Product Category:	Automotive Connectors
RoHS:
Product:	Housings
Number of Positions:	3 Position
Pitch:	10.01 mm (0.394 in)
Gender:	Receptacle (Female)
Mounting Style:	Panel Mount
Termination Style:	Crimp
Wire Gauge Min:	20 AWG
Wire Gauge Max:	14 AWG
Color:	Black
Series:	DT
Application:	Wire to Wire
Brand:	TE Connectivity / DEUTSCH
Contact Gender:	Without Pin Contacts
Contact Type:	Pin
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	MX
Current Rating:	13 A
Dimensions:	40.51 mm x 31.75 mm x 43.13 mm
Flammability Rating:	UL 94
Height:	31.75 mm
Housing Gender:	Receptacle (Female)
Housing Material:	Polyamide (PA)
Ingress Protection:	IP68, IP6K9K
Insulation:	Insulated
Length:	43.13 mm
Locking Mechanism:	Integrated in Housing
Material:	Plastic
Mating Gender:	Plug
Mating Part Number:	DT06-3S
Maximum Operating Temperature:	+ 125 C
Minimum Operating Temperature:	- 55 C
Mounting Angle:	Straight
Number of Rows:	2 Row
Product Type:	Automotive Connectors
Factory Pack Quantity:	1
Subcategory:	Automotive Connectors
Type:	3-Way
Voltage Rating:	250 VAC/DC
Width:	40.51 mm
Wire Gauge Range:	14 AWG to 20 AWG
Unit Weight:	10,740 g

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

DT04-3P-CL06 Datasheet

PCN

RoHS Certificate (PDF)

TARIC:: 8547200000
CNHTS:: 8538900000
USHTS:: 8538906000
JPHTS:: 853890000
MXHTS:: 8538900100
BRHTS:: 85389090
ECCN:: EAR99

Industrial & Commercial Transportation

TE Connectivity's (TE) comprehensive line of Industrial & Commercial Transportation products includes an unparalleled portfolio of rugged electrical connector products and sensor technologies. TE’s environmentally sealed connectors are designed to withstand the harshest environmental conditions and to keep vehicles moving forward. TE's portfolio of heavy-duty sensors helps vehicles operate safer, cleaner, and smarter. Applications range from heavy-duty trucks to construction equipment, mining vehicles to fire trucks, as well as boats, motorcycles, and tractors.

DT Family Connectors

TE Connectivity's (TE) DEUTSCH DT Family of Connectors are environmentally-sealed connectors designed for cable to cable applications on the engine or transmission, under the hood, on the chassis, or in the cab. On signal level circuits in harsh environmental conditions where small connection degradation may be critical, TE DT general purpose connectors provide reliability and performance as well as cost-effectiveness.

DT Connectors

TE Connectivity's (TE) / DEUTSCH DT Connectors are environmentally sealed and designed specifically for cable-to-cable and cable-to-board applications in harsh environments. This series is ideal for use in situations where even a small degradation in connection may be critical. Thermoplastic (-55°C to +125°C rated) housings and silicone seals enable the connectors to withstand extreme temperatures and moisture. These connectors offer the ability to use multiple size 16 contacts, each with 13A continuous capacity, within a single shell. TE DEUTSCH DT Connectors provide reliability and performance on the engine or transmission, under the hood, on the chassis, or in the cab.

Harsh Environment Products

TE Connectivity's (TE) Harsh Environment Products are built to withstand dirt, moisture, salt, and vibration encountered in harsh environments. The harsh environment products include connectors, relays, transducers, receptacles, sensors, and many more. TE Harsh Environment Products improve efficiency, safety, and offer high-reliability.
