HD36-24-23SE-059

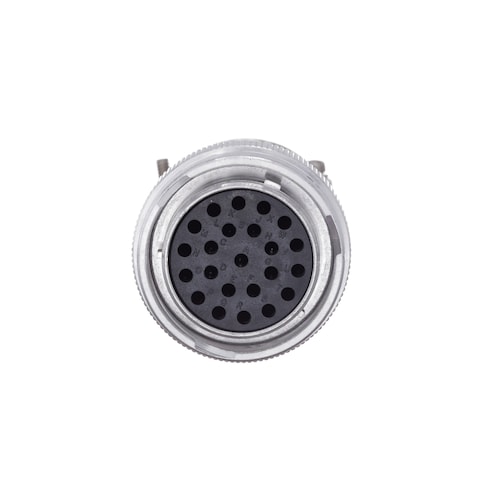

Name: TE Connectivity HD36-24-23SE-059
Brand: TE Connectivity / DEUTSCH
SKU: 571-HD36-24-23SE-059
Price: 53.61 EUR
Availability: OutOfStock

Images are for reference only
See Product Specifications

Mouser No:

571-HD36-24-23SE-059

Mfr. No:

HD36-24-23SE-059

Mfr.:

TE Connectivity / DEUTSCH

Description:

Automotive Connectors PLUG ASM

Datasheet:

HD36-24-23SE-059 Datasheet

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about TE Connectivity / DEUTSCH HD36-24-23SE-059

Availability

Stock:: 0

You can still purchase this product for backorder.

An unexpected error occurred. Please try again later.
Factory Lead Time:: 13 Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

This Product Ships FREE

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	53,61 €	53,61 €
	45,56 €	455,60 €
	42,71 €	1.067,75 €
1.000	Quote

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	TE Connectivity
Product Category:	Automotive Connectors
RoHS:
Product:	Connectors
Number of Positions:	23 Position
Gender:	Plug (Male)
Mounting Style:	Cable Mount / Free Hanging
Termination Style:	Crimp
Wire Gauge Min:	20 AWG
Wire Gauge Max:	14 AWG
Color:	Silver
Series:	HD30
Packaging:	Bulk
Brand:	TE Connectivity / DEUTSCH
Contact Gender:	Without Socket Contacts
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	MX
Current Rating:	13 A
Dimensions:	49.32 mm x 49.32 mm x 81.05 mm
Height:	49.32 mm
Housing Material:	Aluminium
Ingress Protection:	IP67
Length:	81.05 mm
Material:	Aluminum
Mating Part Number:	HD34-24-XXX
Maximum Operating Temperature:	+ 125 C
Minimum Operating Temperature:	- 55 C
Mounting Angle:	Straight
Product Type:	Automotive Connectors
Factory Pack Quantity:	1
Subcategory:	Automotive Connectors
Tradename:	HD
Voltage Rating:	250 V
Width:	49.32 mm
Wire Gauge Range:	14 AWG to 20 AWG
Unit Weight:	180 g
