BSTA078NN00420235000

Name: TE Connectivity BSTA078NN00420235000
Brand: TE Connectivity / Intercontec
SKU: 571-BSTA078NN0042023
Price: 27.19 EUR
Availability: OutOfStock

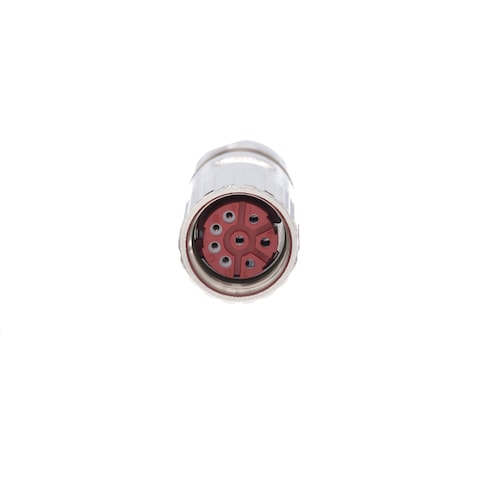

Images are for reference only
See Product Specifications

Mouser No:

571-BSTA078NN0042023

Mfr. No:

BSTA078NN00420235000

Mfr.:

TE Connectivity / Intercontec

Description:

Circular Metric Connectors 923 Plug

Datasheet:

BSTA078NN00420235000 Datasheet

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about TE Connectivity / Intercontec BSTA078NN00420235000

Availability

Stock:: 0

You can still purchase this product for backorder.

An unexpected error occurred. Please try again later.
Factory Lead Time:: 20 Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	27,19 €	27,19 €
	23,73 €	237,30 €
	21,55 €	538,75 €
	20,98 €	839,20 €
	20,39 €	2.446,80 €
	18,83 €	5.272,40 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	TE Connectivity
Product Category:	Circular Metric Connectors
RoHS:
REACH - SVHC:
Product Type:	Circular Metric Connectors
Number of Contacts:	4 Contact, 3 Power + PE
Thread Size:	M28
Termination Style:	Crimp
Current Rating:	7 A, 30 A
Voltage Rating:	250 VAC, 250 VDC, 630 VAC, 630 VDC
IP Rating:	IP67
Body Style:	Straight
Brand:	TE Connectivity / Intercontec
Contact Gender:	Without Socket Contacts
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	DE
Description/Function:	Power and Signal Connector
Diameter:	28 mm
Gender:	Female
Housing Material:	Zinc
Length:	76 mm
Locking Mechanism:	Push Twist
Mounting Style:	Field Attachable-Installable
Product:	Connectors
Shell Style:	Receptacle
Shielding:	Shielded
Factory Pack Quantity:	40
Subcategory:	Circular Connectors
Type:	Straight
Part # Aliases:	BSA078N00420235000
Unit Weight:	133 g

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

BSTA078NN00420235000 Datasheet

PCN

RoHS Certificate (PDF)

TARIC:: 8536699099
CNHTS:: 8538900000
CAHTS:: 8536690030
USHTS:: 8536694020
JPHTS:: 853669000
KRHTS:: 8536699000
BRHTS:: 85366990
ECCN:: EAR99

Connectors

TE Connectivity's Intercontec Connectors offer a large variety of solutions that make connecting easy. These connectors consist of only a few single parts with a modular architecture that makes them highly compatible and usable in many different combinations. The connector assembly is possible without any tools due to the crown clamp that allows the shielding mesh to remain uncut. Multiple codings prevent faulty mating of connectors when wiring complex equipment. TE's Intercontec Connectors follow sophisticated engineering principles, ensuring an easy and efficient assembly process.

Industrial Machine Solutions

TE Connectivity's (TE) Industrial Machine Solutions offer reliable solutions for safer, smarter, productive, and more connected machinery. The product offering meets the needs for integration of data connectivity, miniaturized components, product quality, and reliability. These solutions offer IP-rated protective sealing, miniaturization, ease of installation, and ergonomic designs for safety. TE Industrial Machine Solutions meet the challenges engineers are facing when designing for smarter, more connected machinery.

923 Power Connectors

TE Connectivity's (TE) Intercontec 923 Power Connectors are M23-threaded version connectors with 1, 6, 8, or 9 pins and 30A or 200A maximum power. TE Intercontec 923 Power Connectors offer 630V voltage and 17mm maximum wire diameter. These power connectors are ideal for use in data systems, robotics, mechanical engineering, automation mechatronics, medical/chemical engineering, packaging and printing, and aerospace applications.
