T9AS5D12-5

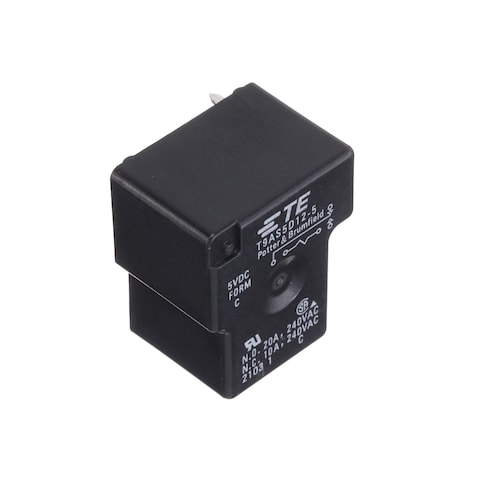

Name: TE Connectivity T9AS5D12-5
Brand: TE Connectivity / P&B
SKU: 655-T9AS5D12-5
Price: 6.18 EUR
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

655-T9AS5D12-5

Mfr. No:

T9AS5D12-5

Mfr.:

TE Connectivity / P&B

Description:

Industrial Relays SPDT 20A 5VDC 25Ohm POWER RELAY

Datasheet:

T9AS5D12-5 Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about TE Connectivity / P&B T9AS5D12-5

In Stock: 324

Stock:: 324 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 18 Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	6,18 €	6,18 €
	5,54 €	55,40 €
	5,41 €	270,50 €
	5,28 €	528,00 €
	5,08 €	1.270,00 €
	4,99 €	2.495,00 €
5.000	Quote

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	TE Connectivity
Product Category:	Industrial Relays
RoHS:
REACH - SVHC:
Mounting Style:	PCB Mount
Product:	Power Relays
Type:	Standard
Contact Termination:	Solder Pin
Relay Contact Form:	1 Form C (SPDT-NO, NC)
Contact Current Rating:	20 A
Coil Type:	Non-Latching
Coil Voltage:	5 VDC
Coil Resistance:	25 Ohms
Switching Voltage:	277 VAC
Contact Material:	Silver Cadmium Oxide (AgCdO)
Series:	T9A
Length:	32.5 mm
Width:	27.4 mm
Height:	27.9 mm
Brand:	TE Connectivity / P&B
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	CN
Power Consumption:	1 W
Product Type:	Industrial Relays
Factory Pack Quantity:	50
Subcategory:	Relays
Part # Aliases:	3-1393210-9
Unit Weight:	29,560 g

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

T9AS5D12-5 Datasheet (PDF)

Technical Resources

Relays Selection (PDF)

RoHS Certificate (PDF)

TARIC:: 8536411090
CNHTS:: 8536411090
CAHTS:: 8536410092
USHTS:: 8536410050
JPHTS:: 853641000
KRHTS:: 8536410000
BRHTS:: 85364100
ECCN:: EAR99

Relay Solutions

TE Connectivity's (TE) broad range of relays and contactors serve a variety of applications. The TE product line includes leading brands such as AGASTAT, AXICOM, CII, KILOVAC, OEG, P&B, PRODUCTS UNLIMITED, and SCHRACK. Switching capabilities range from dry circuit to 1600A, up to 70kV, and as high as 6GHz. Electromechanical, solid-state, and hybrid types range from SMT PC board-mount devices to large panel-mount units. TE's line of relays features expansive sets of options for enclosures, terminations, inputs, contact arrangements, and ratings. High-performance types are specifically designed to operate in rigorous environments (shock, vibration, temperature, altitude) such as those encountered in military and aerospace applications.
