1-106505-2

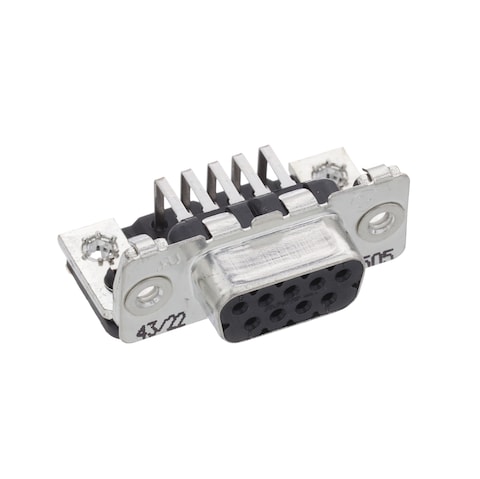

Name: TE Connectivity 1-106505-2
Brand: TE Connectivity
SKU: 571-1-106505-2
Price: 3.91 EUR
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

571-1-106505-2

Mfr. No:

1-106505-2

Mfr.:

TE Connectivity

Description:

D-Sub High Density Connectors 9P.HDP20 REC.ASSY

Datasheet:

1-106505-2 Datasheet

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about TE Connectivity 1-106505-2

In Stock: 307

Stock:: 307

Can Dispatch Immediately

An unexpected error occurred. Please try again later.
On Order:: 880
Factory Lead Time:: 6

Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	3,91 €	3,91 €
	3,61 €	36,10 €
	3,58 €	196,90 €
	3,41 €	375,10 €
	3,19 €	877,25 €
	3,04 €	1.672,00 €
	3,02 €	3.155,90 €
	2,80 €	7.084,00 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	TE Connectivity
Product Category:	D-Sub High Density Connectors
RoHS:
Number of Positions:	9 Position
Number of Rows:	2 Row
Gender:	Female
Termination Style:	Through Hole
Mounting Angle:	Right Angle
Contact Plating:	Gold
Series:	HD-20
Packaging:	Tray
Brand:	TE Connectivity
Contact Material:	Phosphor Bronze
Country of Assembly:	CN
Country of Diffusion:	Not Available
Country of Origin:	CN
Filtered:	Unfiltered
Product Type:	High Density D-Sub Connectors
Shell Material:	Steel
Shell Plating:	Bright Tin
Shell Size:	1
Factory Pack Quantity:	55
Subcategory:	D-Sub Connectors
Tradename:	AMPLIMITE
Unit Weight:	7,257 g

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

1-106505-2 Datasheet

Images

Models

1-106505-2 Symbol & Footprint by SnapMagic

PCN

RoHS Certificate (PDF)

TARIC:: 8536693000
CNHTS:: 8536901100
CAHTS:: 8536690020
USHTS:: 8536694040
JPHTS:: 853669000
KRHTS:: 8536691000
MXHTS:: 85366999
BRHTS:: 85366990
ECCN:: EAR99

AMPLIMITE D-Subminiature Connectors

TE Connectivity's (TE) AMPLIMITE D-Subminiature Connectors are compact pin and socket connectors designed especially for high-density packages. The D-Subminiature connectors are designed for multiple applications along with specialized accessories that provide a cost-effective solution for complex applications. TE AMPLIMITE Standard D-Subminiature connectors are available with MIL-DTL-24308 qualification.

AMPLIMITE Standard D-Subminiature Connectors

TE Connectivity's (TE) AMPLIMITE Standard D-Subminiature Connectors feature a UL 94V-0 rating, 4 to 40 threaded inserts, and HD-20 and HD-22 availability. AMPLIMITE Standard Connectors have front metal, full metal, and plastic shell features that allow the choice of connectors with suitable durability. TE AMPLIMITE Standard D-Subminiature Connectors have a rugged, easy-to-use design ideal for industrial controls, factory automation, base stations, and consumer electronics.
