1-1586042-4

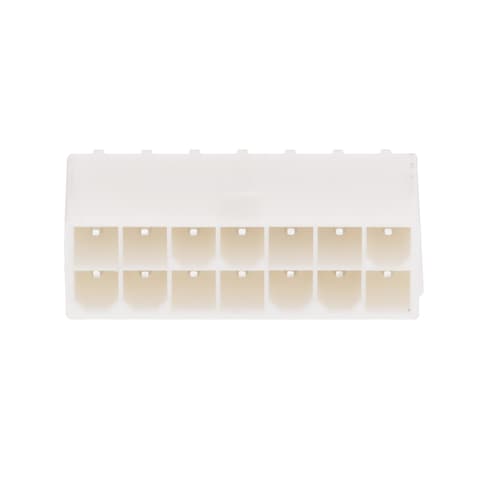

Name: TE Connectivity 1-1586042-4
Brand: TE Connectivity
SKU: 571-1-1586042-4
Price: 1.51 EUR
Availability: OutOfStock

Images are for reference only
See Product Specifications

Mouser No:

571-1-1586042-4

Mfr. No:

1-1586042-4

Mfr.:

TE Connectivity

Description:

Headers & Wire Housings 14P VAL-U-LOK R/A HDR V0

Datasheet:

1-1586042-4 Datasheet

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about TE Connectivity 1-1586042-4

Availability

Stock:: 0

You can still purchase this product for backorder.

An unexpected error occurred. Please try again later.
Factory Lead Time:: 16 Weeks Estimated factory production time.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	1,51 €	1,51 €
	1,32 €	13,20 €
	1,26 €	31,50 €
	1,19 €	119,00 €
	1,09 €	283,40 €
	0,869 €	451,88 €
	0,796 €	827,84 €
	0,753 €	3.817,71 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	TE Connectivity
Product Category:	Headers & Wire Housings
RoHS:
Product:	Headers
Type:	Shrouded
Number of Positions:	14 Position
Pitch:	4.2 mm (0.165 in)
Number of Rows:	2 Row
Row Spacing:	4.2 mm (0.165 in)
Mounting Style:	Through Hole
Termination Style:	Solder Pin
Mounting Angle:	Right Angle
Contact Gender:	Pin (Male)
Contact Plating:	Tin
Termination Post Length:	3.6 mm (0.142 in)
Series:	VAL-U-LOK
Tradename:	VAL-U-LOK
Application:	Wire-to-Board
Minimum Operating Temperature:	- 40 C
Maximum Operating Temperature:	+ 105 C
Brand:	TE Connectivity
Contact Material:	Brass
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	CN
Current Rating:	9 A
Flammability Rating:	UL 94 V-0
Housing Colour:	Natural
Housing Material:	Nylon
Product Type:	Headers & Wire Housings
Factory Pack Quantity:	130
Subcategory:	Headers & Wire Housings
Voltage Rating:	600 V
Unit Weight:	5,050 g

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

1-1586042-4 Datasheet

Images

Models

1-1586042-4 Symbol & Footprint by SnapMagic

RoHS Certificate (PDF)

TARIC:: 8536693000
CNHTS:: 8538900000
CAHTS:: 8536690020
USHTS:: 8536694040
JPHTS:: 853669000
KRHTS:: 8536691000
MXHTS:: 8536699999
BRHTS:: 85366990
ECCN:: EAR99

VAL-U-LOK Connectors

TE Connectivity's (TE) VAL-U-LOK Connectors offer wire-to-wire and wire-to-board connections with contacts on a .165in (4.20mm) centerline pitch as well as up to 9A current ratings per line and 600V_AC max. rating. TE VAL-U-LOK plug and receptacle housings allow wire-to-wire and wire-to-panel configurations and are available in 2 to 24 dual-row positions and 3 to 5 single-row position models. Header assemblies offer vertical and right-angle wire-to-board connections. The vertical headers are available with optional polarization pegs and drain holes and offer a blind-mate version while the right-angle headers offer optional screw-mount flanges.
