1-1827862-0

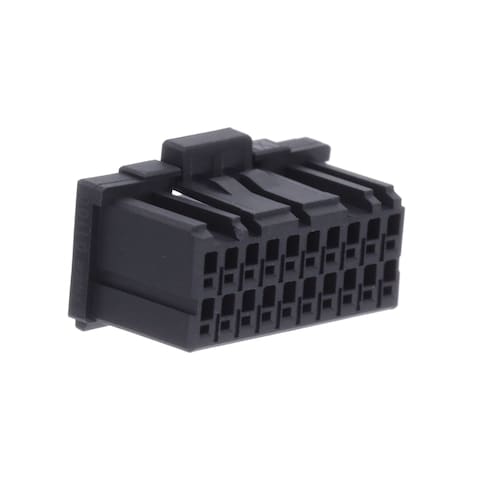

Name: TE Connectivity 1-1827862-0
Brand: TE Connectivity
SKU: 571-1-1827862-0
Price: 1.38 EUR
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

571-1-1827862-0

Mfr. No:

1-1827862-0

Mfr.:

TE Connectivity

Description:

Headers & Wire Housings 1100D RCPT 20P X BLK

Datasheet:

1-1827862-0 Datasheet

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about TE Connectivity 1-1827862-0

In Stock: 897

Stock:: 897 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 14 Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	1,38 €	1,38 €
	1,18 €	11,80 €
	1,05 €	26,25 €
	0,894 €	89,40 €
	0,82 €	246,00 €
	0,777 €	466,20 €
	0,739 €	775,95 €
	0,672 €	3.427,20 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	TE Connectivity
Product Category:	Headers & Wire Housings
RoHS:
Product:	Wire Housings
Type:	Receptacle Housing
Number of Positions:	20 Position
Pitch:	2 mm (0.079 in)
Number of Rows:	2 Row
Row Spacing:	3.3 mm (0.13 in)
Mounting Style:	Cable Mount / Free Hanging
Termination Style:	Crimp
Mounting Angle:	Straight
Contact Gender:	Socket (Female)
Series:	D-1000
Tradename:	DYNAMIC SERIES
Application:	Wire-to-Board
Minimum Operating Temperature:	- 55 C
Maximum Operating Temperature:	+ 105 C
Packaging:	Bulk
Brand:	TE Connectivity
Contact Type:	Socket (Female)
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	CN
Housing Gender:	Receptacle
Housing Material:	Polyester
Product Type:	Headers & Wire Housings
Factory Pack Quantity:	150
Subcategory:	Headers & Wire Housings
Unit Weight:	50 g

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

1-1827862-0 Datasheet

Images

PCN

RoHS Certificate (PDF)

TARIC:: 8547200090
CNHTS:: 8547200000
CAHTS:: 8536690020
USHTS:: 8538906000
JPHTS:: 853669000
KRHTS:: 8536691000
MXHTS:: 85366999
BRHTS:: 85366990
ECCN:: EAR99

Dynamic Series Ruggedized Connectors

TE Connectivity's Dynamic Series Ruggedized Connectors are designed for use in control systems and in a wide range of applications requiring high-density, signal, and power. The series features a ruggedized, industrialized package that provides connector solutions ranging from signal-level circuitry to power circuit connectivity. The portfolio includes wire-to-board, wire-to-panel, and wire-to-wire connectors with a diverse range of housings. Standard crimp and spring clamp variations of parts are available. The standardized contacts limit the amount of application tooling required. A centralized wiring system saves time and costs by offering a modular capability that allows for expansion as needed. Typical applications for TE Dynamic Series Ruggedized Connectors include industrial control, Human Machine Interface (HMI), data communication, robotics, power distribution, and more.
