1-1871468-2

Name: TE Connectivity 1-1871468-2
Brand: TE Connectivity
SKU: 571-1-1871468-2
Price: 1.3 EUR
Availability: InStock

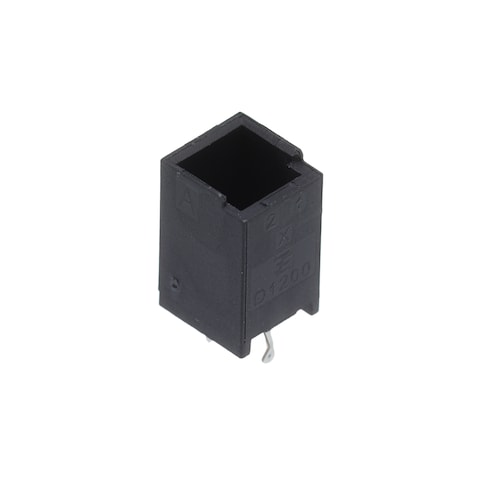

Images are for reference only
See Product Specifications

Mouser No:

571-1-1871468-2

Mfr. No:

1-1871468-2

Mfr.:

TE Connectivity

Description:

Headers & Wire Housings 1200S HDR V 2P X AU

Datasheet:

1-1871468-2 Datasheet

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about TE Connectivity 1-1871468-2

In Stock: 2.882

Stock:: 2.882 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 13 Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	1,30 €	1,30 €
	1,26 €	12,60 €
	0,972 €	24,30 €
	0,92 €	92,00 €
	0,832 €	456,77 €
	0,764 €	792,27 €
	0,729 €	3.646,46 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	TE Connectivity
Product Category:	Headers & Wire Housings
RoHS:
Product:	Headers
Type:	Shrouded
Number of Positions:	2 Position
Pitch:	2.5 mm (0.098 in)
Number of Rows:	1 Row
Mounting Style:	Through Hole
Termination Style:	Solder Pin
Mounting Angle:	Straight
Contact Gender:	Pin (Male)
Contact Plating:	Gold
Series:	D-1000
Tradename:	DYNAMIC SERIES
Application:	Wire-to-Board
Minimum Operating Temperature:	- 55 C
Maximum Operating Temperature:	+ 105 C
Packaging:	Tube
Brand:	TE Connectivity
Contact Material:	Copper Alloy
Contact Type:	Tab
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	CN
Housing Gender:	Plug
Housing Material:	Polyester
Product Type:	Headers & Wire Housings
Factory Pack Quantity:	61
Subcategory:	Headers & Wire Housings
Unit Weight:	50 g

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

1-1871468-2 Datasheet

Images

RoHS Certificate (PDF)

TARIC:: 8536693000
CNHTS:: 8536901100
CAHTS:: 8536690020
USHTS:: 8536694040
JPHTS:: 853669000
KRHTS:: 8536691000
MXHTS:: 8536699999
BRHTS:: 85366990
ECCN:: EAR99

Dynamic Series Ruggedized Connectors

TE Connectivity's Dynamic Series Ruggedized Connectors are designed for use in control systems and in a wide range of applications requiring high-density, signal, and power. The series features a ruggedized, industrialized package that provides connector solutions ranging from signal-level circuitry to power circuit connectivity. The portfolio includes wire-to-board, wire-to-panel, and wire-to-wire connectors with a diverse range of housings. Standard crimp and spring clamp variations of parts are available. The standardized contacts limit the amount of application tooling required. A centralized wiring system saves time and costs by offering a modular capability that allows for expansion as needed. Typical applications for TE Dynamic Series Ruggedized Connectors include industrial control, Human Machine Interface (HMI), data communication, robotics, power distribution, and more.
