2-1564530-1

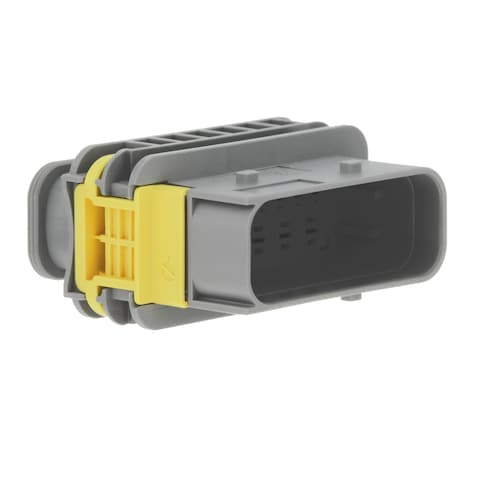

Name: TE Connectivity 2-1564530-1
Brand: TE Connectivity
SKU: 571-2-1564530-1
Price: 3.11 EUR
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

571-2-1564530-1

Mfr. No:

2-1564530-1

Mfr.:

TE Connectivity

Description:

Automotive Connectors 15POS MIXED TAB

Datasheet:

2-1564530-1 Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about TE Connectivity 2-1564530-1

In Stock: 2.140

Stock:: 2.140 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 13 Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	3,11 €	3,11 €
	2,65 €	26,50 €
	2,37 €	59,25 €
	2,14 €	214,00 €
	2,03 €	406,00 €
	1,98 €	1.188,00 €
	1,91 €	1.910,00 €
	1,82 €	4.732,00 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	TE Connectivity
Product Category:	Automotive Connectors
RoHS:
Product:	Housings
Number of Positions:	15 Position
Gender:	Pin (Male)
Color:	Gray
Series:	Heavy Duty Sealed Connector
Packaging:	Bulk
Application:	Wire to Wire
Brand:	TE Connectivity
Contact Gender:	Pin (Male)
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	DE
Flammability Rating:	UL 94 V-0
Height:	48.1 mm
Housing Material:	Polybutylene Terephthalate (PBT)
Ingress Protection:	IP67
Length:	52.6 mm
Locking Mechanism:	On the terminal
Maximum Operating Temperature:	+ 140 C
Minimum Operating Temperature:	- 40 C
Number of Rows:	2 Row
Product Type:	Automotive Connectors
Row Spacing:	1.5 mm
Factory Pack Quantity:	200
Subcategory:	Automotive Connectors
Voltage Rating:	42 VDC
Width:	27 mm

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

TARIC:: 8538909999
CNHTS:: 8538900000
CAHTS:: 8538903900
USHTS:: 8538906000
JPHTS:: 853890000
MXHTS:: 8538900100
BRHTS:: 85389090
ECCN:: EAR99

Industrial & Commercial Transportation

TE Connectivity's (TE) comprehensive line of Industrial & Commercial Transportation products includes an unparalleled portfolio of rugged electrical connector products and sensor technologies. TE’s environmentally sealed connectors are designed to withstand the harshest environmental conditions and to keep vehicles moving forward. TE's portfolio of heavy-duty sensors helps vehicles operate safer, cleaner, and smarter. Applications range from heavy-duty trucks to construction equipment, mining vehicles to fire trucks, as well as boats, motorcycles, and tractors.

Heavy Duty Sealed Connector System

TE Connectivity's (TE) AMP Heavy Duty Sealed Connector System is targeted for the commercial vehicle industry and off-road applications. This wire-to-wire and wire-to-device connector system is designed to meet the rigorous demands of an industry that requires the highest performance standards. TE's Heavy Duty Sealed Connector System consists of five groups of connectors in different sizes, from 2- to 18-way connectors. TE's AMP Heavy Duty Sealed Connector System also has mixed combinations with signal and power lines available.
