2-179960-2

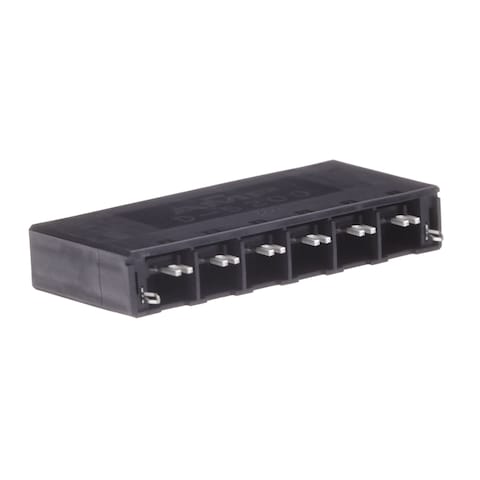

Name: TE Connectivity 2-179960-2
Brand: TE Connectivity
SKU: 571-2-179960-2
Price: 11.86 EUR
Availability: OutOfStock

Images are for reference only
See Product Specifications

Mouser No:

571-2-179960-2

Mfr. No:

2-179960-2

Mfr.:

TE Connectivity

Description:

Headers & Wire Housings HDR ASSY 6P V Y

Datasheet:

2-179960-2 Datasheet

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about TE Connectivity 2-179960-2

Availability

Stock:: Non-Stocked

An unexpected error occurred. Please try again later.
Factory Lead Time:: 14 Weeks Estimated factory production time.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	11,86 €	11,86 €
	10,52 €	73,64 €
	10,11 €	283,08 €
	9,71 €	543,76 €
	9,17 €	962,85 €
	8,36 €	2.106,72 €
	7,82 €	3.941,28 €
	7,64 €	7.647,64 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	TE Connectivity
Product Category:	Headers & Wire Housings
RoHS:
Product:	Headers
Type:	Shrouded
Number of Positions:	6 Position
Pitch:	10.16 mm (0.4 in)
Number of Rows:	1 Row
Mounting Style:	Through Hole
Termination Style:	Solder
Mounting Angle:	Straight
Contact Gender:	Pin (Male)
Contact Plating:	Gold
Series:	D-5000
Tradename:	DYNAMIC SERIES
Application:	Wire-to-Board
Minimum Operating Temperature:	- 55 C
Maximum Operating Temperature:	+ 105 C
Packaging:	Tube
Brand:	TE Connectivity
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	CN
Current Rating:	30 A
Flammability Rating:	UL 94 V-0
Housing Colour:	Black
Housing Material:	Polyester
Product Type:	Headers & Wire Housings
Factory Pack Quantity:	7
Subcategory:	Headers & Wire Housings

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

2-179960-2 Datasheet

Images

PCN

RoHS Certificate (PDF)

TARIC:: 8536693000
CNHTS:: 8538900000
CAHTS:: 8536690020
USHTS:: 8536694040
JPHTS:: 853669000
KRHTS:: 8536691000
MXHTS:: 8536699999
BRHTS:: 85366990
ECCN:: EAR99

Dynamic Series Ruggedized Connectors

TE Connectivity's Dynamic Series Ruggedized Connectors are designed for use in control systems and in a wide range of applications requiring high-density, signal, and power. The series features a ruggedized, industrialized package that provides connector solutions ranging from signal-level circuitry to power circuit connectivity. The portfolio includes wire-to-board, wire-to-panel, and wire-to-wire connectors with a diverse range of housings. Standard crimp and spring clamp variations of parts are available. The standardized contacts limit the amount of application tooling required. A centralized wiring system saves time and costs by offering a modular capability that allows for expansion as needed. Typical applications for TE Dynamic Series Ruggedized Connectors include industrial control, Human Machine Interface (HMI), data communication, robotics, power distribution, and more.
