281695-6

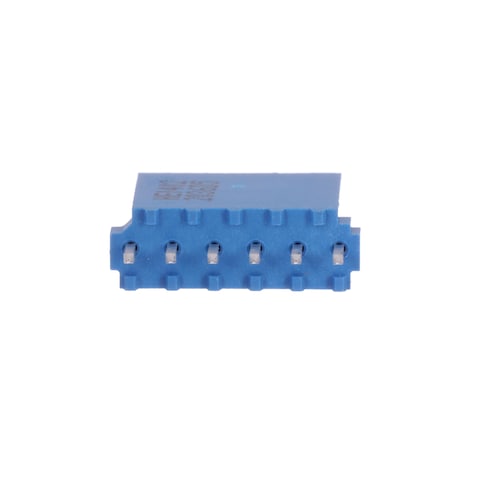

Name: TE Connectivity 281695-6
Brand: TE Connectivity
SKU: 571-281695-6
Price: 1.21 EUR
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

571-281695-6

Mfr. No:

281695-6

Mfr.:

TE Connectivity

Description:

Headers & Wire Housings HEADER VERT 6 POS HE14

Datasheet:

281695-6 Datasheet

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

In Stock: 3.121

Stock:: 3.121 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 16 Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	1,21 €	1,21 €
	1,04 €	10,40 €
	1,03 €	25,75 €
	0,886 €	88,60 €
	0,877 €	219,25 €
	0,782 €	391,00 €
	0,759 €	759,00 €
	0,691 €	1.382,00 €
	0,648 €	2.592,00 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	TE Connectivity
Product Category:	Headers & Wire Housings
RoHS:
Product:	Headers
Type:	Shrouded
Number of Positions:	6 Position
Pitch:	2.54 mm (0.1 in)
Number of Rows:	1 Row
Mounting Style:	Through Hole
Termination Style:	Solder Pin
Mounting Angle:	Straight
Contact Gender:	Pin (Male)
Contact Plating:	Tin
Series:	HE13 / HE14
Tradename:	AMPMODU
Application:	Wire-to-Board
Minimum Operating Temperature:	- 40 C
Maximum Operating Temperature:	+ 100 C
Packaging:	Bulk
Brand:	TE Connectivity
Contact Material:	Phosphor Bronze
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	CN
Flammability Rating:	UL 94 V-0
Housing Colour:	Blue
Housing Material:	Thermoplastic (TP)
Product Type:	Headers & Wire Housings
Factory Pack Quantity:	4000
Subcategory:	Headers & Wire Housings
Unit Weight:	1,001 g

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

281695-6 Datasheet

Images

Models

281695-6 Symbol & Footprint by SnapMagic

RoHS Certificate (PDF)

TARIC:: 8536693000
CNHTS:: 8536901100
CAHTS:: 8536690020
USHTS:: 8536694040
JPHTS:: 853669000
KRHTS:: 8536691000
MXHTS:: 8536699999
BRHTS:: 85366990
ECCN:: EAR99

AMPMODU Interconnection System

TE Connectivity's (TE) AMPMODU Interconnection System provides connections with a unique modular concept, utilizing precision-formed receptacle contacts and mating posts. Mating of the post and receptacle contacts of this system is very tolerant. This is made possible by a post with a burr-free lead-in and a receptacle contact featuring double cantilever beams and anti-overstress stops.
