281783-3

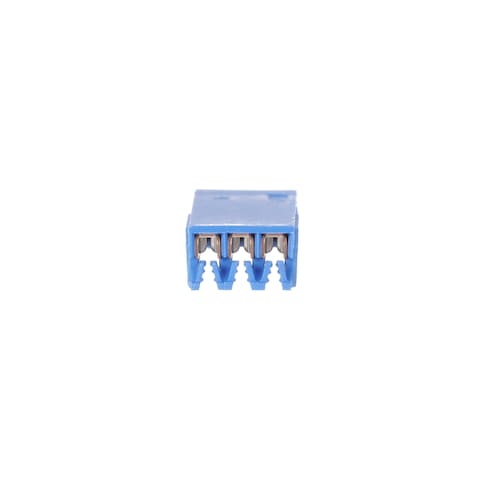

Name: TE Connectivity 281783-3
Brand: TE Connectivity
SKU: 571-281783-3
Price: 1.14 EUR
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

571-281783-3

Mfr. No:

281783-3

Mfr.:

TE Connectivity

Description:

Headers & Wire Housings PLUG HE14 IDC 180 3 P AWG 26-24

Datasheet:

281783-3 Datasheet

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

In Stock: 1.524

Stock:: 1.524 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 16 Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	1,14 €	1,14 €
	0,98 €	9,80 €
	0,877 €	21,93 €
	0,828 €	82,80 €
	0,776 €	194,00 €
	0,738 €	369,00 €
	0,703 €	703,00 €
	0,659 €	1.647,50 €
	0,636 €	3.180,00 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	TE Connectivity
Product Category:	Headers & Wire Housings
RoHS:
Product:	Wire Housings
Type:	Receptacle Housing
Number of Positions:	3 Position
Pitch:	2.54 mm (0.1 in)
Number of Rows:	1 Row
Row Spacing:	2.54 mm (0.1 in)
Mounting Style:	Cable Mount / Free Hanging
Termination Style:	Crimp
Contact Gender:	Socket (Female)
Series:	HE13 / HE14
Tradename:	AMPMODU
Application:	Wire-to-Board
Wire Gauge:	26 AWG to 24 AWG
Minimum Operating Temperature:	- 55 C
Maximum Operating Temperature:	+ 125 C
Brand:	TE Connectivity
Contact Material:	Phosphor Bronze
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	CN
Housing Colour:	Blue
Housing Material:	Polybutylene Terephthalate (PBT)
Product Type:	Headers & Wire Housings
Factory Pack Quantity:	500
Subcategory:	Headers & Wire Housings
Unit Weight:	1,290 g

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

281783-3 Datasheet

Images

RoHS Certificate (PDF)

TARIC:: 8536699099
CNHTS:: 8536901100
CAHTS:: 8536690090
USHTS:: 8538906000
JPHTS:: 853669000
KRHTS:: 8536699000
MXHTS:: 8536699999
BRHTS:: 85366990
ECCN:: EAR99

AMPMODU Interconnection System

TE Connectivity's (TE) AMPMODU Interconnection System provides connections with a unique modular concept, utilizing precision-formed receptacle contacts and mating posts. Mating of the post and receptacle contacts of this system is very tolerant. This is made possible by a post with a burr-free lead-in and a receptacle contact featuring double cantilever beams and anti-overstress stops.
