Name: TE Connectivity 292175-7
Brand: TE Connectivity
SKU: 571-292175-7
Price: 1.74 EUR
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

571-292175-7

Mfr. No:

292175-7

Mfr.:

TE Connectivity

Description:

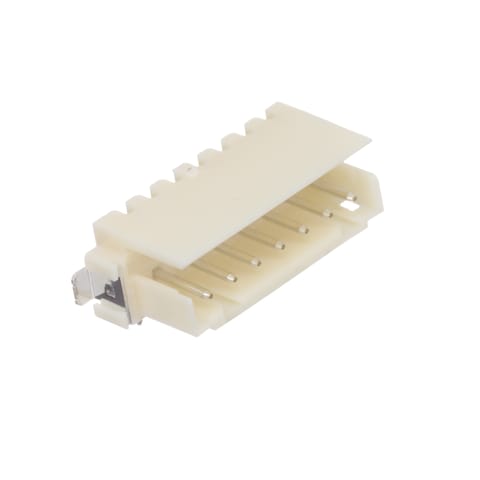

Headers & Wire Housings CT BOX HDR V SMT 7P

Datasheet:

292175-7 Datasheet

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

In Stock: 350

Stock:: 350 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 9 Weeks Estimated factory production time for quantities greater than shown.

Quantities greater than 350 will be subject to minimum order requirements.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Packaging:

Full Reel (Order in multiples of 700)

Cut Tape

MouseReel™ (+5,00 €)

Pricing (EUR)

Qty.	Unit Price	Ext. Price
Cut Tape / MouseReel™ ^†
	1,74 €	1,74 €
	1,55 €	15,50 €
	1,51 €	37,75 €
	1,36 €	136,00 €
	1,28 €	320,00 €
Full Reel (Order in multiples of 700)
	1,18 €	826,00 €

† A MouseReel™ fee of 5,00 € will be added and calculated in your basket. All MouseReel™ orders are non-cancellable and non-returnable. ↩

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	TE Connectivity
Product Category:	Headers & Wire Housings
RoHS:
Product:	Headers
Type:	Shrouded
Number of Positions:	7 Position
Pitch:	2 mm (0.079 in)
Number of Rows:	1 Row
Mounting Style:	SMD/SMT
Termination Style:	Solder
Mounting Angle:	Straight
Contact Gender:	Pin (Male)
Contact Plating:	Tin
Series:	AMP CT
Tradename:	Common Termination
Application:	Wire-to-Board, Wire-to-Wire
Wire Gauge:	28 AWG to 22 AWG
Minimum Operating Temperature:	- 40 C
Maximum Operating Temperature:	+ 105 C
Packaging:	Reel
Packaging:	Cut Tape
Packaging:	MouseReel
Brand:	TE Connectivity
Contact Material:	Brass
Contact Type:	Pin
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	CN
Current Rating:	4 A
Housing Colour:	Natural
Product Type:	Headers & Wire Housings
Factory Pack Quantity:	700
Subcategory:	Headers & Wire Housings
Voltage Rating:	125 V
