322307

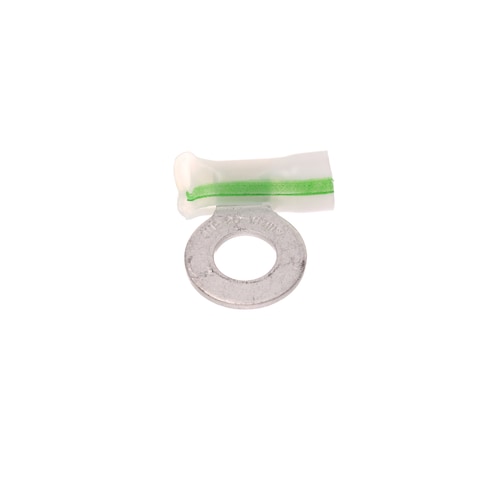

Name: TE Connectivity 322307
Brand: TE Connectivity
SKU: 571-322307
Price: 3.46 EUR
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

571-322307

Mfr. No:

322307

Mfr.:

TE Connectivity

Description:

Terminals RING FLAG 20-16AWG #14

Datasheet:

322307 Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about TE Connectivity 322307

In Stock: 1.009

Stock:: 1.009 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 32 Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	3,46 €	3,46 €
	2,58 €	25,80 €
	2,39 €	59,75 €
	2,30 €	230,00 €
	2,15 €	537,50 €
	2,12 €	1.060,00 €
	2,11 €	2.110,00 €
	1,96 €	3.920,00 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	TE Connectivity
Product Category:	Terminals
RoHS:
Product:	Screw Terminals
Type:	Right Angle Ring
Termination Style:	Crimp
Insulation:	Insulated
Stud/Tab Size:	# 14
Wire Gauge Max:	16 AWG
Mounting Style:	Screw
Color:	Natural with Green Stripe
Contact Plating:	Tin
Contact Material:	Copper
Series:	PLASTI-GRIP
Tradename:	PLASTI-GRIP
Packaging:	Bulk
Brand:	TE Connectivity
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	US
Insulation Material:	Vinyl
Length:	19.02 mm
Material:	Copper
Mounting Angle:	Straight
Product Type:	Terminals
Factory Pack Quantity:	1000
Subcategory:	Terminals
Voltage Rating:	600 V
Width:	12.7 mm
Wire Gauge:	16 AWG
Unit Weight:	1,725 g

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

322307 Datasheet (PDF)

PCN

Product Change Notification (PDF)

RoHS Certificate (PDF)

TARIC:: 8536901000
CNHTS:: 8536901100
CAHTS:: 8536900020
USHTS:: 8536904000
JPHTS:: 853690000
KRHTS:: 8536909010
MXHTS:: 8536902800
BRHTS:: 85369090
ECCN:: EAR99

PLASTI-GRIP Terminals

TE Connectivity's (TE) PLASTI-GRIP Terminals are pre-insulated solderless terminals and splices designed specifically to answer the need for inexpensive, insulated electrical terminations. TE's PLASTI-GRIP Terminals can be used in almost all commercial applications and accommodate wire sizes from 22AWG through 2/0AWG. Application tooling has been developed to ensure uniformly high-quality terminations and tool and terminal have been designed to promote ease and speed of application while providing precise crimping pressure for every wire size. The wire and terminal barrel provide a connection of maximum conductivity, tensile strength, and high resistance to corrosion. The quality performance, the facility of installation, and the inherent simplicity make them ideal for many industrial applications and are available as rings, spades, flanged spaded, slotted rings, splices, and several other varieties.
