440055-3

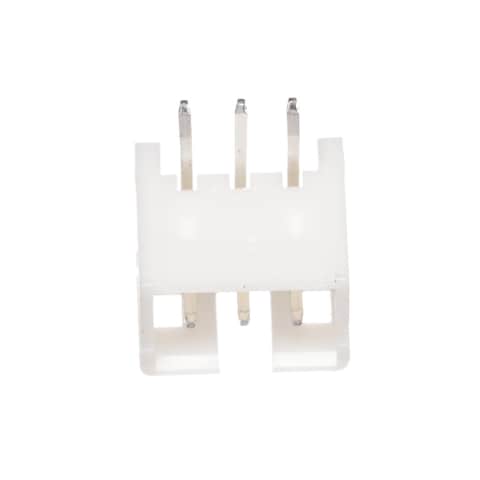

Name: TE Connectivity 440055-3
Brand: TE Connectivity
SKU: 571-440055-3
Price: 0.19 EUR
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

571-440055-3

Mfr. No:

440055-3

Mfr.:

TE Connectivity

Description:

Headers & Wire Housings 3 POS HDR R/A 2.0mm

Datasheet:

440055-3 Datasheet

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

In Stock: 16.939

Stock:: 16.939 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 8 Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	0,198 €	0,20 €
	0,167 €	1,67 €
	0,157 €	3,93 €
	0,136 €	13,60 €
	0,12 €	30,00 €
	0,10 €	100,00 €
	0,096 €	288,00 €
	0,089 €	445,00 €
	0,085 €	850,00 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	TE Connectivity
Product Category:	Headers & Wire Housings
RoHS:
Product:	Headers
Type:	Shrouded
Number of Positions:	3 Position
Pitch:	2 mm (0.079 in)
Number of Rows:	1 Row
Mounting Style:	Through Hole
Termination Style:	Solder Pin
Mounting Angle:	Right Angle
Contact Gender:	Pin (Male)
Contact Plating:	Tin
Series:	AMP CT
Tradename:	Common Termination
Application:	Wire-to-Board
Minimum Operating Temperature:	- 25 C
Maximum Operating Temperature:	+ 85 C
Brand:	TE Connectivity
Contact Material:	Brass
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	CN
Housing Colour:	Natural
Housing Material:	Nylon
Product Type:	Headers & Wire Housings
Factory Pack Quantity:	1000
Subcategory:	Headers & Wire Housings
Unit Weight:	197 mg

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

440055-3 Datasheet

Images

RoHS Certificate (PDF)

TARIC:: 8536693000
CNHTS:: 8536901100
CAHTS:: 8536690020
USHTS:: 8536694040
JPHTS:: 853669000
KRHTS:: 8536691000
MXHTS:: 8536699999
BRHTS:: 85366990
ECCN:: EAR99

HPI and CT Connectors

TE Connectivity / AMP High Performance Interconnects (HPI) polarized connectors feature reliable wire-to-board sockets and headers that provide audible click feedback when mating. The connectors are available in 2 to 15 positions and accommodate AWG 30 to 24 wire. TE Connectivity / AMP Common Termination (CT) Connectors feature mini 1.5mm and 2mm post header, receptacle, and crimp type housing assemblies for wire-to-board applications. The devices are available in 1 row and 2 row types and feature insulation displacement contacts (IDC).
