53056

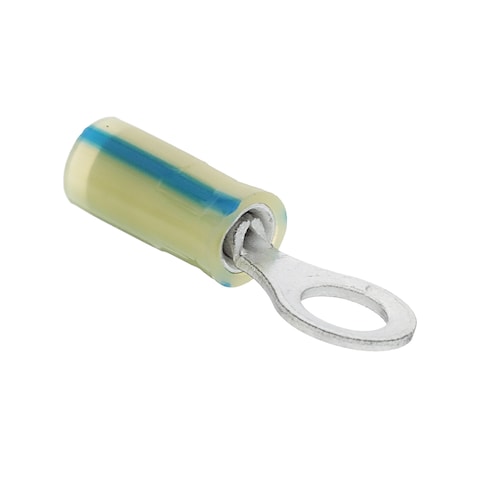

Name: TE Connectivity 53056
Brand: TE Connectivity
SKU: 571-53056
Price: 3.86 EUR
Availability: OutOfStock

Images are for reference only
See Product Specifications

Mouser No:

571-53056

Mfr. No:

53056

Mfr.:

TE Connectivity

Description:

Terminals RING 24 AWG YEL/BLU #8

Datasheet:

53056 Datasheet

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

Availability

Stock:: 0

You can still purchase this product for backorder.

An unexpected error occurred. Please try again later.
Factory Lead Time:: 48 Weeks Estimated factory production time for quantities greater than shown.

Long lead time reported on this product.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	3,86 €	3,86 €
	3,26 €	32,60 €
	2,93 €	73,25 €
	2,79 €	279,00 €
	2,61 €	652,50 €
	2,48 €	1.240,00 €
	2,30 €	2.300,00 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	TE Connectivity
Product Category:	Terminals
RoHS:
REACH - SVHC:
Product:	Screw Terminals
Type:	Ring
Termination Style:	Crimp
Gender:	Female
Insulation:	Insulated
Stud/Tab Size:	# 8
Wire Gauge Max:	24 AWG
Mounting Style:	Screw
Color:	Yellow with Blue Stripe
Contact Plating:	Tin
Contact Material:	Copper
Series:	PIDG
Tradename:	PIDG
Brand:	TE Connectivity
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	US
Insulation Material:	Nylon
Material:	Copper
Product Type:	Terminals
Factory Pack Quantity:	1000
Subcategory:	Terminals
Voltage Rating:	300 VAC
Wire Gauge:	24 AWG
Unit Weight:	2 g

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

53056 Datasheet

PCN

RoHS Certificate (PDF)

TARIC:: 8536901000
CNHTS:: 8538900000
CAHTS:: 8536900020
USHTS:: 8536904000
JPHTS:: 853690000
KRHTS:: 8536909010
MXHTS:: 8536902800
BRHTS:: 85369090
ECCN:: EAR99

TE Connectivity / AMP Connectors TE Connectivity / AMP Connectors PIDG Terminals

TE Connectivity / AMP Connectors PIDG Terminals consist of tin plated copper or tin plated phosphor bronze body for spring spades, plus a copper and color insulation sleeve fitted over a terminal barrel, and are designed for uniform reliability in the most difficult circuit environments. The specialized design of tool dies and the construction of the terminal allows for uniform insulation thickness under crimping pressure, transmitting this pressure evenly to the center of the crimping area.
Learn More

Terminals & Splices

TE Connectivity's Terminals and Splices can help make the job fast and easy whether it's making a few connections in the lab or millions on an assembly line. With a broad range of sizes, materials, retention features, temperature ranges, and insulation options, users can select just the characteristics needed for their application. TE's application tooling, from hand tools to fully automated applicators, can help to assure consistency of the crimp connections.

PIDG Terminals

TE Connectivity's (TE) PIDG Terminals are designed for uniform reliability in the most difficult circuit environments. These terminals consist of tin-plated copper or tin-plated phosphor bronze body for spring spades, plus a copper and color insulation sleeve fitted over a terminal barrel. The specialized design of tool dies and the terminal construction allows for uniform insulation thickness under crimping pressure, transmitting this pressure evenly to the center of the crimping area. TE's PIDG Terminals are ideal for instruments and controls, lighting, power supplies, panel boxes, lifting equipment, motors, and appliances, as well as transportation and aerospace applications.
