8000072456

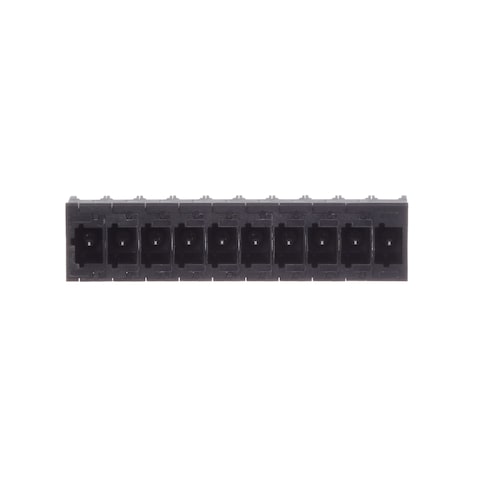

Name: Weidmuller 8000072456
Brand: Weidmuller
SKU: 470-8000072456
Price: 4.23 EUR
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

470-8000072456

Mfr. No:

8000072456

Mfr.:

Weidmuller

Description:

Pluggable Terminal Blocks MHS 5/10 V T3 B T

Datasheet:

8000072456 Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Weidmuller 8000072456

In Stock: 27

Stock:: 27 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 10 Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	4,23 €	4,23 €
	3,00 €	30,00 €
	2,62 €	52,40 €
	2,40 €	120,00 €
	2,36 €	236,00 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Weidmuller
Product Category:	Pluggable Terminal Blocks
RoHS:
Product:	Headers
Number of Positions:	10 Position
Pitch:	5 mm
Connection Method:	Plug-in
Termination Style:	Solder
Mounting Style:	PCB Mount
Current Rating:	25.3 A
Voltage Rating:	400 V
Color:	Black
Series:	Omnimate 4.0 MHS
Packaging:	Tube
Brand:	Weidmuller
Contact Material:	Copper Alloy
Contact Plating:	Tin
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	DE
Flammability Rating:	UL 94 V-0
Height:	17.2 mm
Housing Material:	Polyamide (PA)
Length:	11.9 mm
Product Type:	Pluggable Terminal Blocks
Factory Pack Quantity:	10
Subcategory:	Terminal Blocks
Tradename:	Omnimate
Width:	51.38 mm

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

8000072456 Datasheet (PDF)

This functionality requires JavaScript to be enabled.

TARIC:: 8536693000
CAHTS:: 8536690020
USHTS:: 8536694040
JPHTS:: 853669000
KRHTS:: 8536691000
BRHTS:: 85366990
ECCN:: EAR99

OMNIMATE® 4.0 Pluggable Terminal Blocks

Weidmuller OMNIMATE^® 4.0 Pluggable Terminal Blocks are an efficient solution for continuous, digitalized device development. The Weidmuller OMNIMATE 4.0 combines super-fast wire connection technology, modular product design, and fast delivery. SNAP IN connection technology allows even flexible conductors without ferrules to be connected easily without tools. An indicator signals a secure connection both acoustically and visually.
