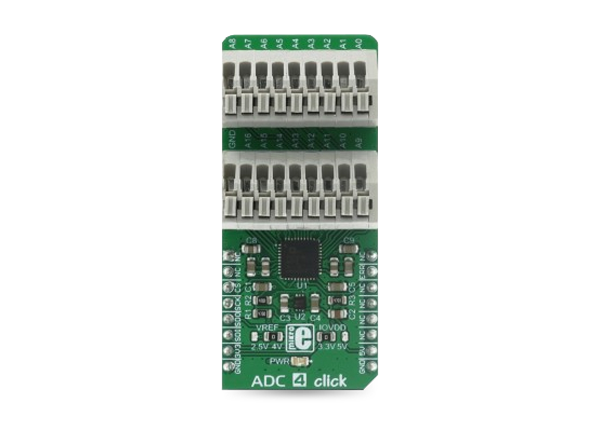

Mikroe MIKROE-2879 ADC 4 Click Development Tool

Mikroe MIKROE-2879 ADC 4 Click Development Tool is used to evaluate AD7175-8 IC which is a main active component of ADC 4 click. This ADC7175-8 IC is a 24-bit low noise, fast settling, multiplexed 8 or 16-channel sigma-delta ADC from analog devices. The MIKROE-2879 board is an analog to digital multichannel converter that features a high sampling resolution of 24-bits and an output data rate ranging from 5SPS to 250kSPS. This ADC development board can sample inputs from 16 single-ended channels or 8 differential input channel pairs. The MIKROE-2879 is equipped with an internal reference voltage source of 2.5V and an external reference voltage circuit which provides 4.096V.

This ADC 4 click development tool reference voltage options provide flexibility in choosing the right reference voltage for any application. The MIKROE-2879 ADC contains 9 pole spring action terminals, AD7175-8 IC, logic level selection, power LED, LT6656-LOD, and reference voltage selection. This ADC device comes with 57.15mm x 25.4mm board size. The MIKROE-2879 ADC 4 click are suitable for PLC or DCS modules, temperature and pressure measurement, medical and scientific multichannel instrumentation, and chromatography.

Features

  • 3.3V to 5V reference input voltage
  • 0V to 5V analog input voltage
  • 57.15mm x 25.4mm board size
  • 16 single-ended channel
  • 8 differential input channel pairs
  • 24bits sampling resolution
  • 5SPS to 250kSPS output data rates
  • GPIO and SPI interface type

Applications

  • PLC or DCS modules
  • Temperature measurement
  • Pressure measurement
  • Medical and scientific multi-channel instrumentation
  • Chromatography
