Antenova A5839H / A5887H Evaluation Board
Antenova A5839H / A5887H Evaluation Board is designed to evaluate A5839H / A5887H 2.4GHz Rufa antennas. This evaluation board interfaces to the A5839H / A5887H 2.4GHz Rufa antennas via a Surface Mount Adhesive (SMA) female connector.
Features
- Evaluates A5887H 2.4GHz rufa antenna
- Interfaces via SMA female connector

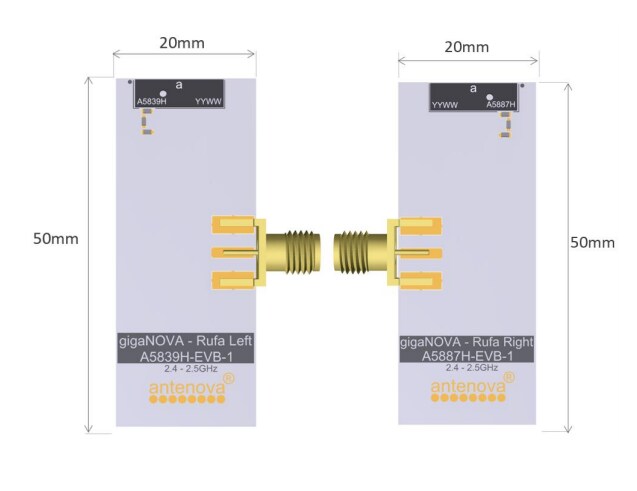

A5389H / A5887H Evaluation Board Layout

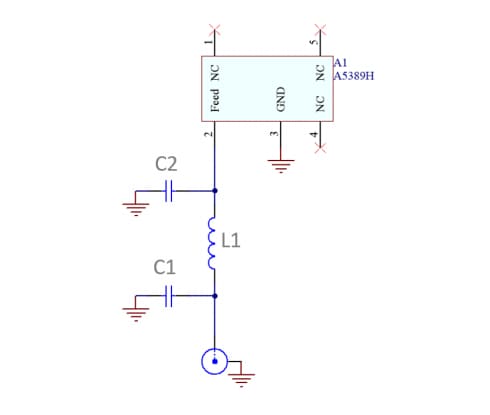

A5389H / A5887H Evaluation Board Matching Circuit
View A5887H Rufa Antenna
Antenova Rufa 2.4GHz Antennas
Designed for 2.4GHz frequency applications like BT/BLE, Wi-Fi, and ZigBee delivers 2.1dBi peak gain.
