CUI Inc PDRD-75 DIN Rail AC-DC Power Supplies

CUI Inc PDRD-75 DIN Rail AC-DC Power Supplies are single-output 75W AC-DC power supplies housed in compact DIN rail packages. These power supplies feature over-voltage, Over-Current Protection (OCP), Short-Circuit Protection (SCP), and 12V, 24V, and 48V typical output voltage ranges. The PDRD-75 DIN rail supplies are ideal for use in industrial environments, including factory automation and control applications.

Features

  • 12V, 24V and 48V typical output voltage range
  • 85V to 305VAC and 120V to 430VDC input voltage range
  • 47Hz to 63Hz frequency range
  • -40°C to 85°C operating temperature with derating
  • Over-temperature
  • Output over-voltage
  • Over-Current Protection (OCP)
  • Short-Circuit Protection (SCP)
  • CLASS I safety
  • Output voltage trim
  • Certified to UL 61010, EN/BS EN 62368-1
  • CISPR32/EN55032 CLASS B compliant

Applications

  • Industrial environments:
    • Factory automation
    • Control applications

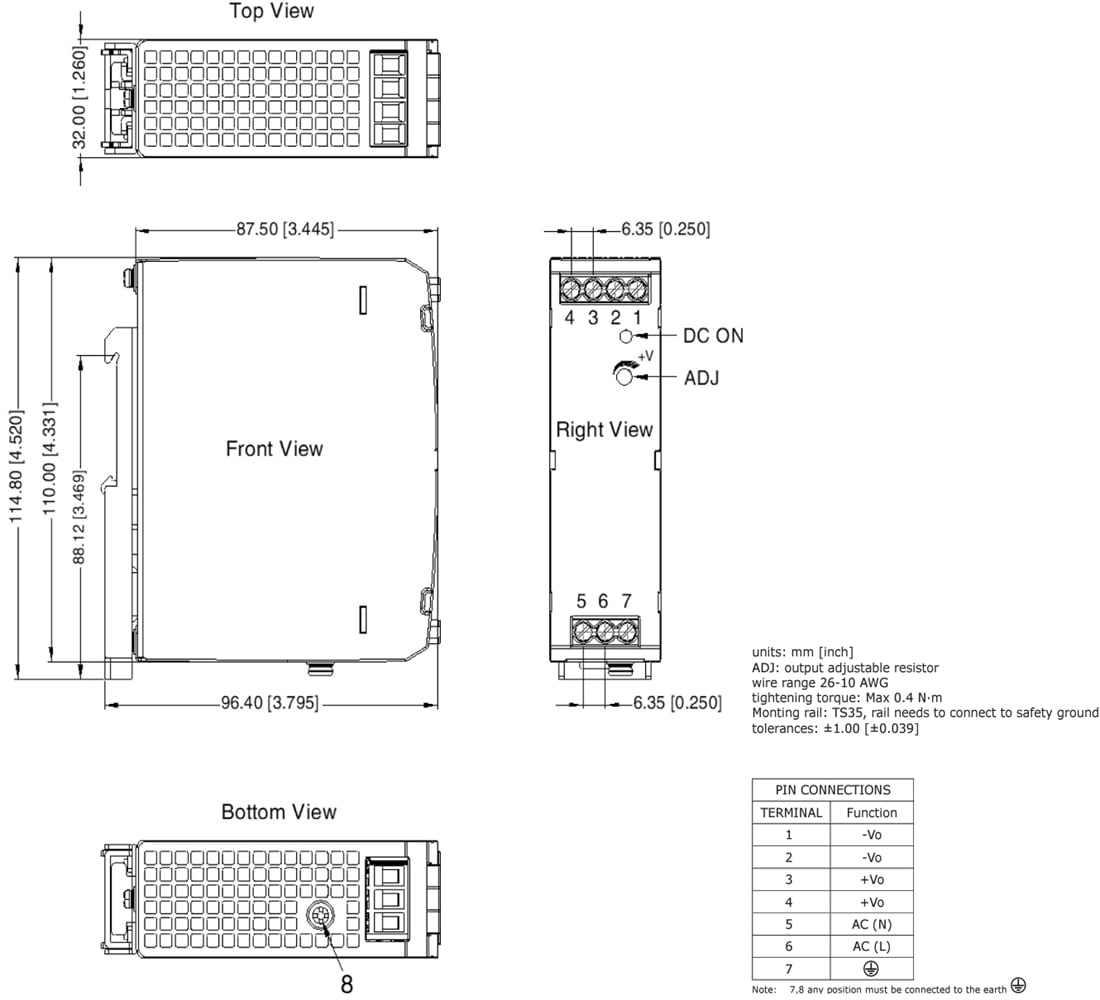

Dimension Diagram

Mechanical Drawing - CUI Inc PDRD-75 DIN Rail AC-DC Power Supplies

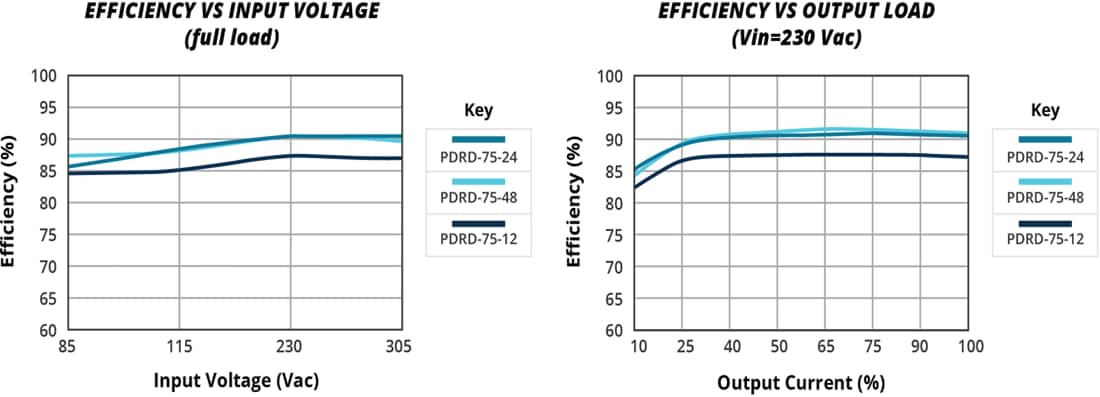

Efficiency Curves

Performance Graph - CUI Inc PDRD-75 DIN Rail AC-DC Power Supplies
