Diodes Incorporated AH191x Digital Omnipolar Hall-effect Switches
Diodes Incorporated AH191x Digital Omnipolar Hall-effect Switches offer ultra-low power omnipolar (North or South Pole) operation. These Diodes Incorporated digital hall-effect switches feature a chopper-stabilized design that provides superior temperature stability, minimal switch point drift, and enhanced immunity to physical stress. The AH191x hall-effect switches can withstand up to 6kV Electrostatic Discharge (ESD). These omnipolar Hall-effect switches operate at -40°C to 85°C temperature range and 1.6V to 5.5V supply voltage range.
The AH191x digital omnipolar Hall-effect switches deliver good RF noise immunity without requiring external pull-up resistors. These digital omnipolar switches are ideal for battery-powered consumer products, smartphones, E-meters, smoke detectors, and IoT devices.
Features
- Omnipolar operation (North or South pole)
- Micropower operation
- Chopper stabilized design
- Superior temperature stability
- Minimal switch point drift
- Enhanced immunity to physical stress
- SC59 and X1-DFN1216-4 small low-profile packages
- High ESD capability of 6kV (human body model)
Applications
- Small cover or dock detect for cellular phones and tablets
- Position detection for digital still, video cameras, and handheld gaming consoles
- Door, lids, and tray position detect switches
- Home appliances and industrial appliances
- Level, proximity switches, E-locks, and smoke detectors
- Medical devices
- IoT systems

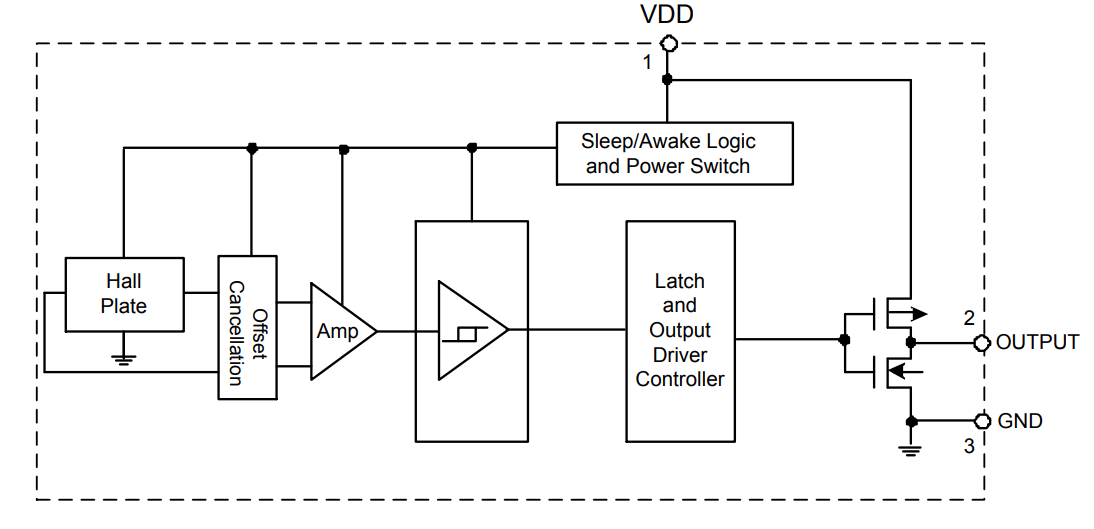

Functional Block Diagram

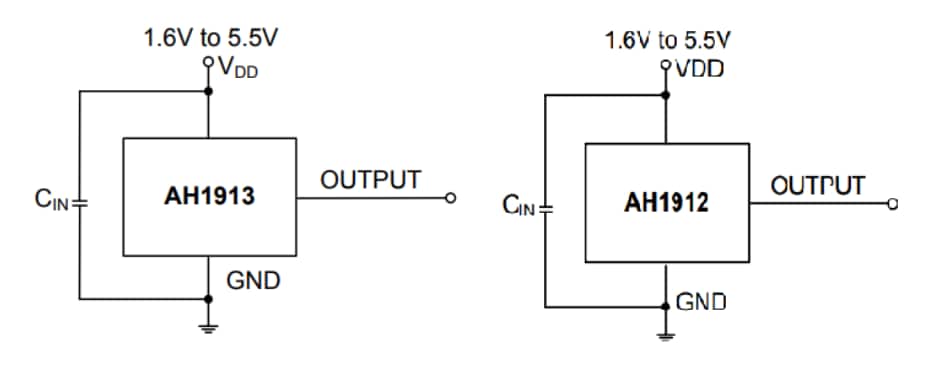

Typical Application Circuit
Associated Board
Diodes Incorporated AH1912x Evaluation Boards
Evaluate AH1912x digital hall-effect switches that offer ultra-low power omnipolar operation.
Published: 2019-07-04
| Updated: 2023-07-26
