Lumileds LUXEON 5052 RGBW
Lumileds LUXEON 5052 RGBW is a 4-in-1 package that makes color tuning easier. Each channel of Lumileds LUXEON MultiColor Module 2.5W is individually addressable, enabling a large color gamut while simplifying the ability to get a precise color point.
Features
- RGBW 4-in-1 module
- Compact 5mm x 5mm package
- Individually control each channel
Applications
- Wall grazer
- Linear
- Wall wash
- Decorative
Product Performance

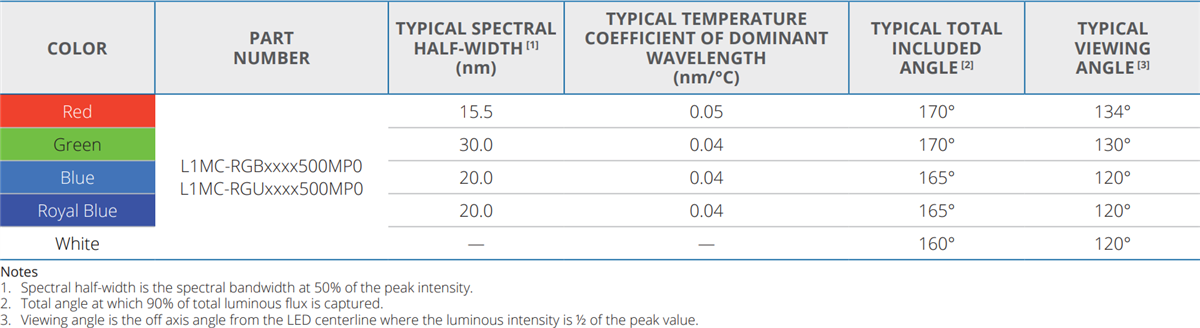

Optical Characteristics
Electrical & Thermal Characteristics
Maximum Ratings

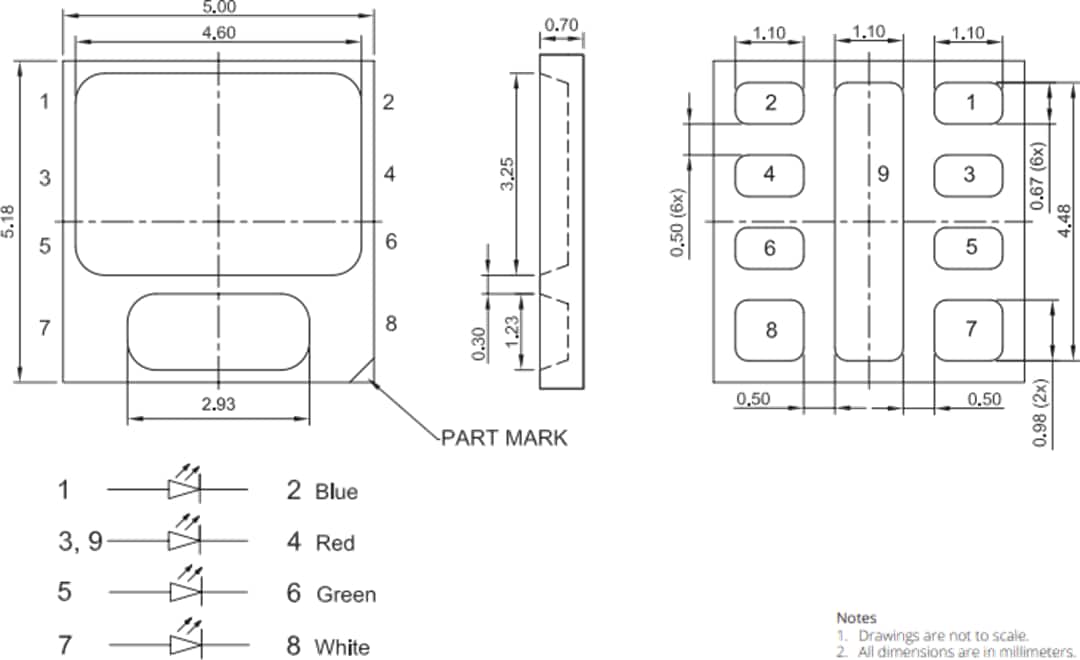

Package Outline
Related Products
Lumileds Color LEDs
Innovative lighting designs with a full spectrum of colors, including red, cyan, UV, lime, and mint.
Published: 2019-09-25
| Updated: 2024-02-27
