Nisshinbo NJW4104/07 LDO Voltage Regulator ICs

Nisshinbo NJW4104/07 LDO Voltage Regulator ICs feature a wide 4V to 40V input voltage and a -40°C to 125°C operating temperature range. These voltage regulator ICs feature ON/OFF control (A version only), under-voltage lockout, thermal shutdown, and over-current protection circuits. The NJW4104/07 voltage regulator ICs are AEC-Q100 grade 1 qualified (T1 specification only) and correspond to a Multilayer Ceramic Capacitor (MLCC). Typical applications include automotive infotainment, automotive ECU units, and industrial equipment.

Features

  • AEC-Q100 grade 1 qualified (T1 specification only)
  • Correspond to a Multilayer Ceramic Capacitor (MLCC)
  • ON/OFF control (A version only)
  • Under-voltage lockout circuit
  • Thermal shutdown circuit
  • Over-current protection circuit

Specifications

  • NJW4104:
    • Low quiescent current:
      • 5.5µA typical (A version)
      • 5µA typical (B version)
    • Output voltage accuracy:
      • Vo±1%(Ta=25°C)
      • Vo±2%(Ta=-40°C to 125°C)
    • Package outline:
      • SOT-89-5-2 (A version )
      • SOT-89-3 and TO-252-3-L1 (B version)
  • NJW4107:
    • Fast transient response
    • Output voltage accuracy:
      • Vo±1%(Ta=25°C)
      • Vo±1%(Ta=-40°C to 125°C)
    • Package outline:
      • SOT-89-5-2 (A version)
      • SOT-89-3 (B version)
  • 4V to 40V input voltage range
  • -40°C to 125°C operating temperature range

Applications

  • Automotive infotainment
  • Automotive ECU units
  • Industrial equipment

Block Diagram

Block Diagram - Nisshinbo NJW4104/07 LDO Voltage Regulator ICs

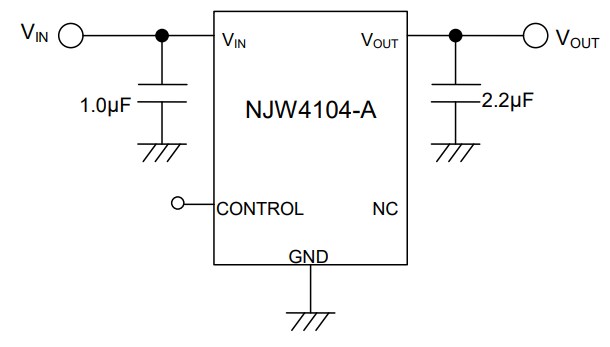

Typical Application Diagram

Application Circuit Diagram - Nisshinbo NJW4104/07 LDO Voltage Regulator ICs
